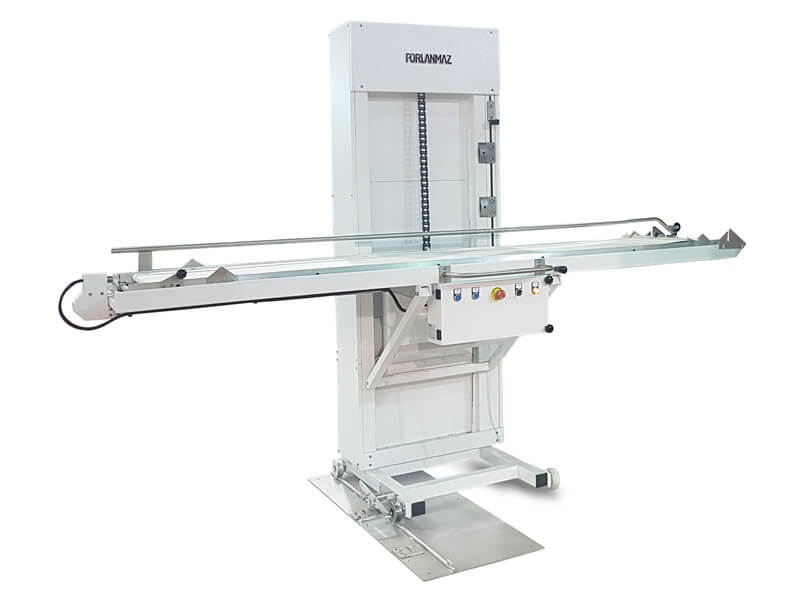

Semi-Automatic Loader

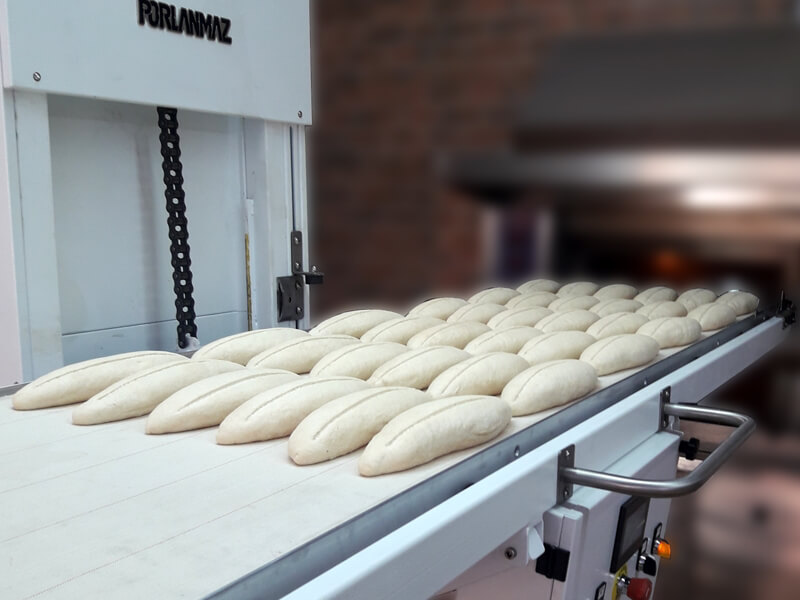

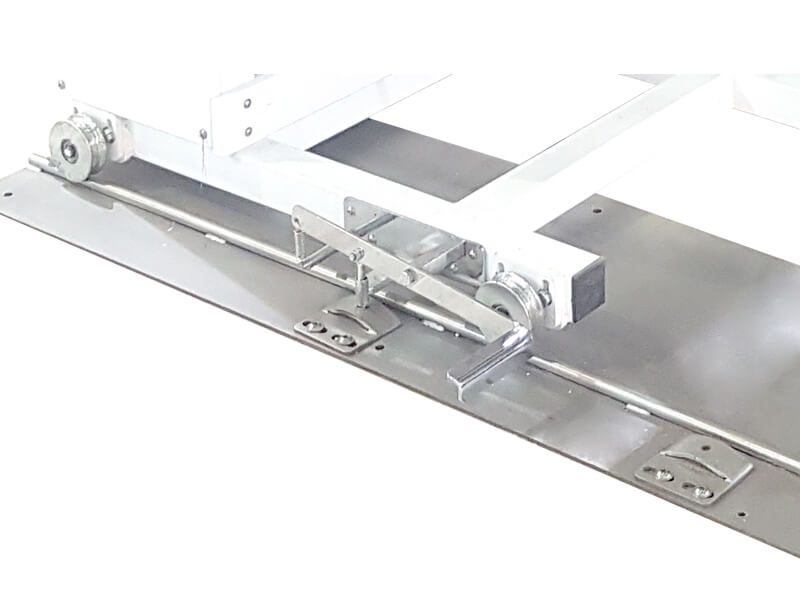

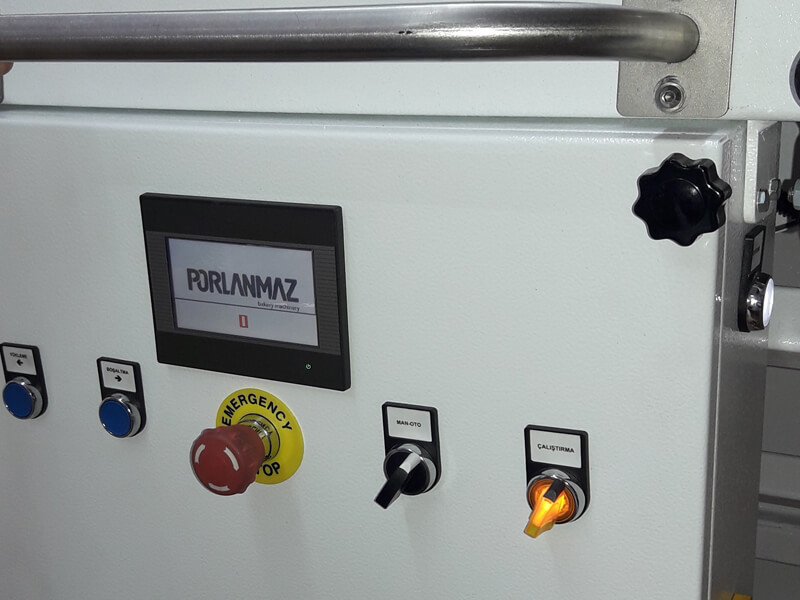

Designed for loading the dough into oven and unloading from oven. Can be adapted to any deck oven. Loading and unloading processes are done automatically. Lifting and lowering the loader process are very smooth and done by a lever. By help of the pedal and rail system, the loader manually is  moved right and left in front of the oven. Equipped with touchscreen monitor. Column structure in painted steel with a central counterweight. It is possible to make fully manual.

Model Unit PMKF 100L
With of the pallet (W1) mm 580
Length of the pallet (L1) mm 2800
Width (W) mm 1175
Length (L) mm 3200
Height (H) mm 2165
Control system   Analogue or touchscreen
Electrical power kW 0,55
Weight kg 780

* On request all dimensions can be changed and adapted to any deck oven

Semi-Automatic Loader
Manufacturer reserves the right to change specifications without prior notice.
