PRODUCTS / Assistant Equipments / Water Chiller

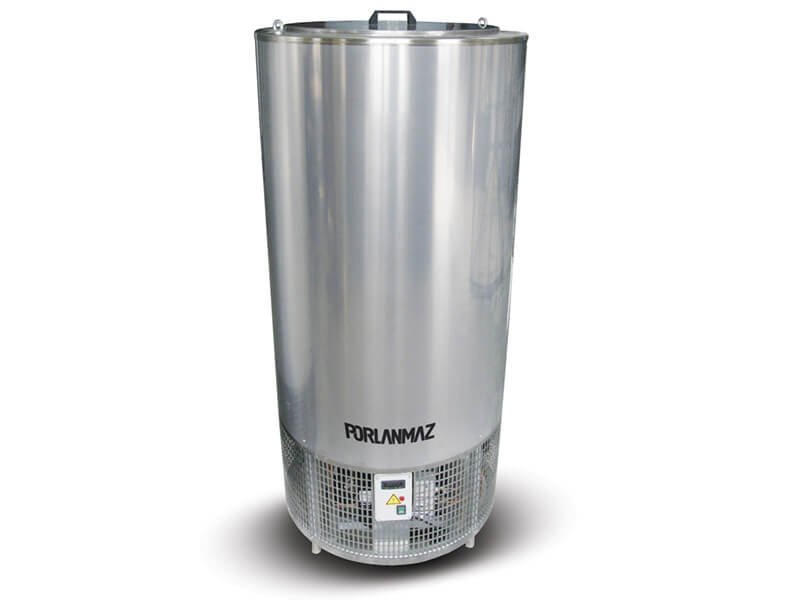

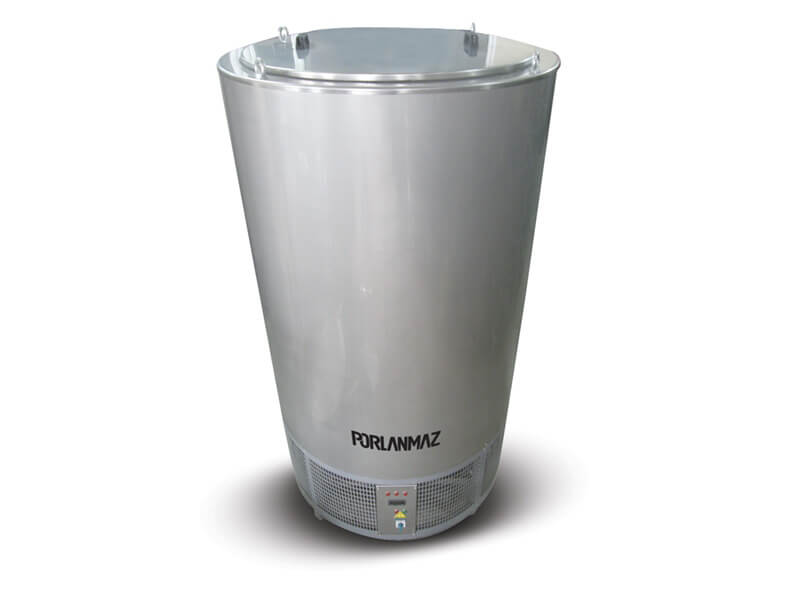

Water Chiller Porlanmaz
Water Chiller Porlanmaz
0
Water Chiller Porlanmaz
1
Water Chiller Porlanmaz
2

 - Designed for using in small places.
 - It keeps the adjusted temperature stable.
 - Cooling system which is located outside of the tank is not in contact with water.
 - Completely made of stainless steel.
 - Cooling temperature up to 1 °C.
 - Hygienic design.
 - Cooling system is controlled by a microscopic digital thermostat.
 - Its high technology design ensures energy saving.

Model Unit PMS-C300 PMM-D600 PML-X900
Tank capacity l 300 600 900
Coolingcapacity l / h 80 100 160
Supplyvoltage V / Hz 220 / 50 220 / 50 380 / 50
Minimum cooling temperature °C 1,5 1,5 1,5
Diameter of tank (D) mm 800 960 1100
Height of tank (H) mm 1770 2030 2050
Compressor motor power (hermetic) kW 0,95 0,95 1,5

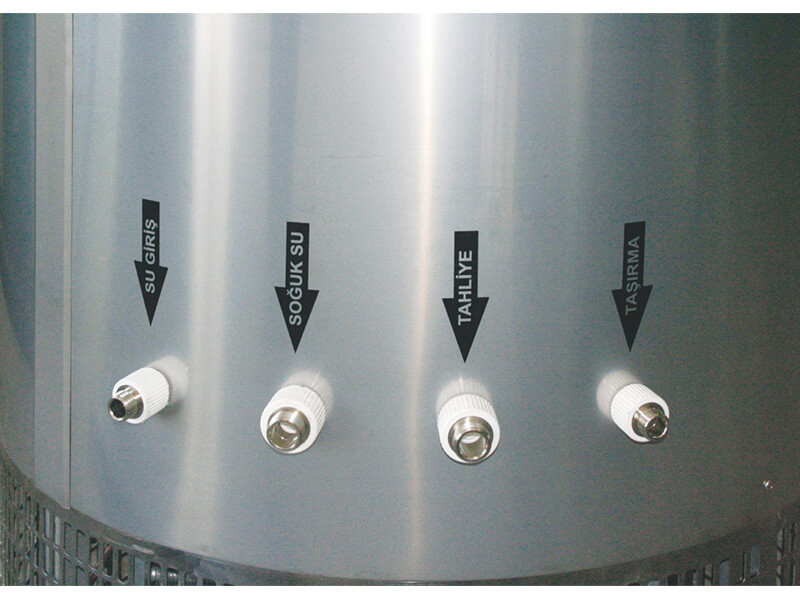

Water connection (inlet-outlet) inch ½ - ¾ ½ - ¾ ½ - ¾
Water connection (discharge- overflow) inch ¾ - ½ ¾ - ½ ¾ - ½
Weight kg 148 192 255
Manufacturer reserves the right to change specifications without prior notice.
