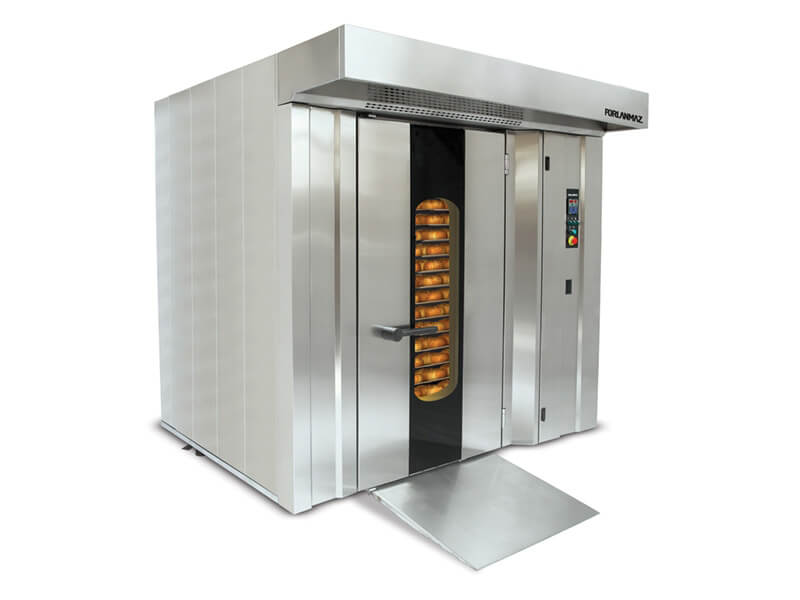

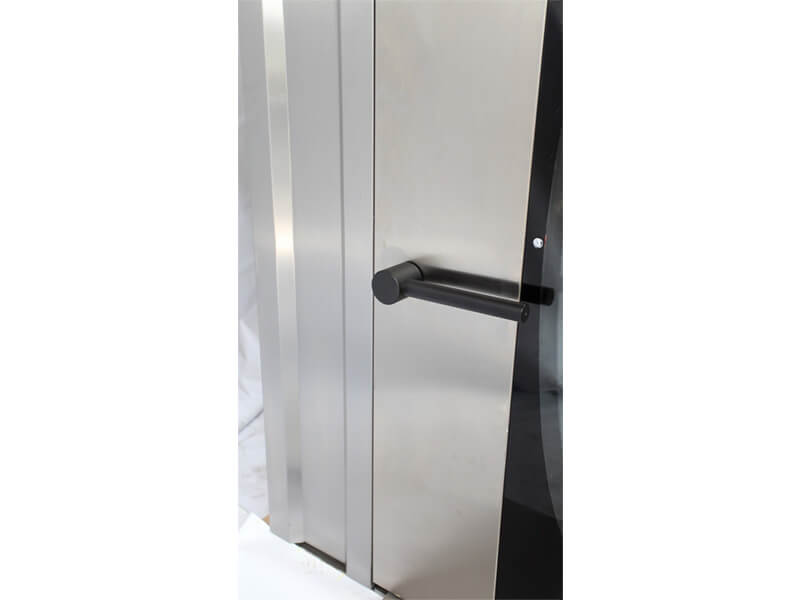

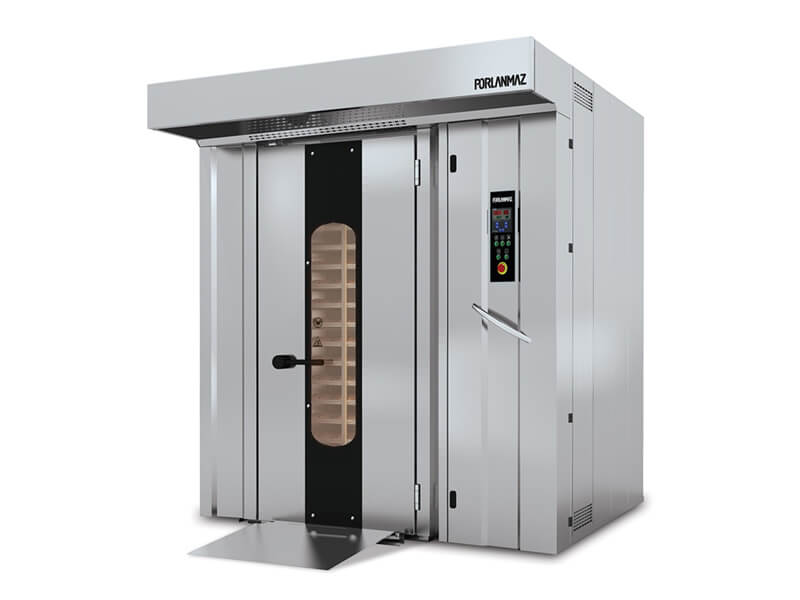

Themajor feature of the Porlanmaz Rotary Rack Oven is the equal heat distribution; operate at high production and regular circulation. It's provided by well-designed heat exchangers.This ensures more uniform baking with lower energy consumption.Burning chamber is made of heat resistive (more than 1000 centigrade degree) special stainless steel. By means of the plate-tube system, high level steam is produced and each of the pans is adequately provided with the steam. By means of halogen lamps which are mounted the on the door, an excellent illumination is obtained and it is easy to replace the lamps. The steam is prevented to be dispersed in the workshop thanks to the hood and aspirator over the oven. Baking chamber, all outside hoods ad chimney hood are fully made of stainless steel. It is easier to maintain and use of the oven as per its peers.It is recommended that a water softening unit is fitted to the water supply of all ovens. The main specification of the oven is the burner is located in the front side. For small places this oven can be produced as fully demountable.

Model Unit PMDF 50F PMDF 100F PMDF 150F PMDF 200F
Capacity* (bread/8 hours) pcs 1750 2500 3000 5000
Baking surface 2,8 - 5,2 3,8 - 7,7 4,8 - 9,6 8 - 10

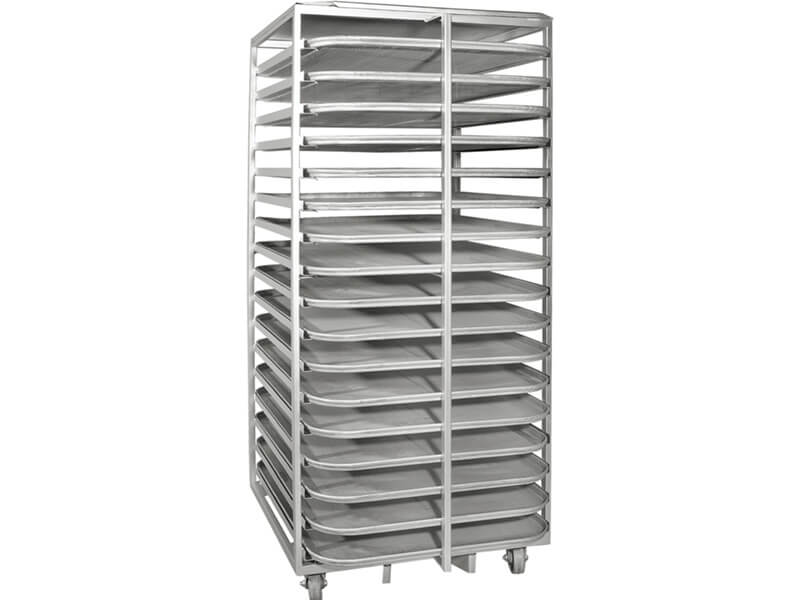

Number of trays pcs 8 - 15 8 - 16 10 - 20 10 - 20
Distance between trays mm 150 - 80 160 - 80 160 - 80 160 - 80
Traysize mm 530x650 600x800
600x900
600x800
600x900
800x1000
750x1040
Width (W) mm 1750 2000 2000 2325
Length (L1) mm 1375 1600 1600 1865
Length (L) mm 1775 2000 2000 2190
Height (H) mm 2150 2300 2500 2500
Electrical power kW 2.6 2.6 2.6 3.8
Heating capacity kcal/h 32000 50000 60000 70000
Max. temperature oC 350 350
Gas coupling pressure / Working pressure mbar 300 / 50 300 / 50 300 / 50 300 / 50
Electric capacity for electrical model kW 34 46 53 68
Source of energy   Diesel, Natural gas / LPG, Electric energy
Weight of oven kg 1120 1450 1740 2210

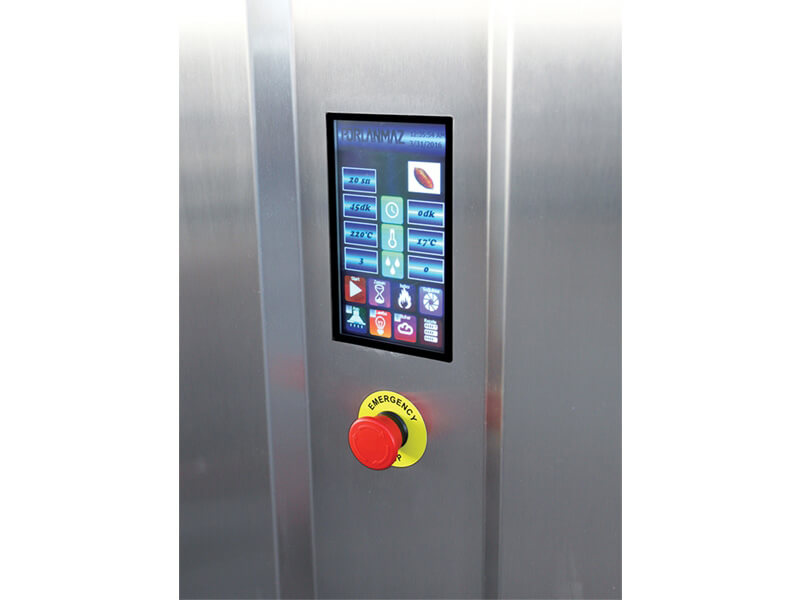

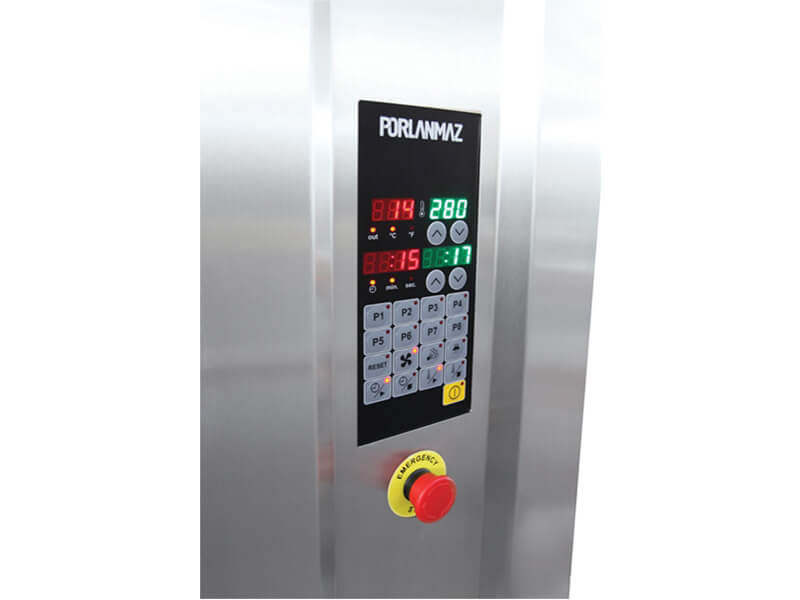

Control system   Analogue, Digital or Touch Screen
Energy Consumption** Diesel (l/h) 3,6 5,7 6,8 8
Natural gas ( m³/h) 4,2 6,5 7,9 9,2
LPG (l/h) 3 5 6 6,8
  * The capacity shall variable according to the weight and baking time of the product.
  ** Energy consumption under normal conditions.
Manufacturer reserves the right to change specifications without prior notice.
